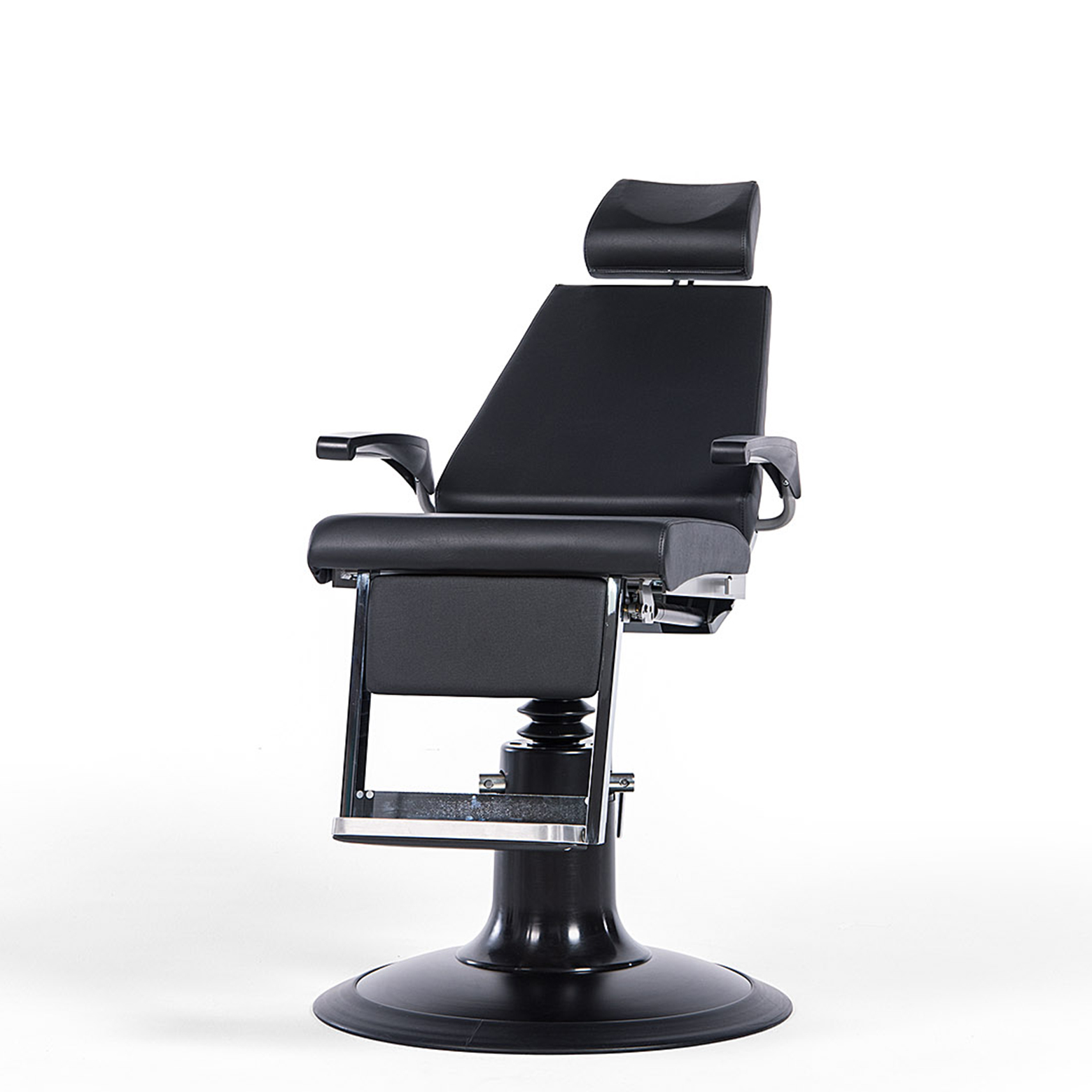

Medseat hydraulic

Equipment

  • 20 cm range of hydraulic height adjustment
  • Synchronous adjustment of the lying surface (manual)
  • Upper part can be turned by 360° and can be fixed in every position
  • Armrests can be turned away
  • Synchronous moving legrest, fixed legrest or without legrest
  • Optionally with swivable seat cushion available (patient can be turned by 90° to the left or right side)

Technical data

Weight (according to the model) 90 kg - 101 kg
Seat width 51 cm
Seat depth 45 cm
Overall depth 70 cm - 80 cm
Overall height 136 cm - 166 cm
Seat height 58 cm - 88 cm
Overall width 70 cm
Surface area of the reclined chair, with legrest 194 cm - 204 cm
Surface area of the reclined chair, without legrest 135 cm - 145 cm
Inclination nof the backrest to fully flat position yes
Connction 230V/50 - 60 Hz
Max. patient weight 200 kg

Accessories

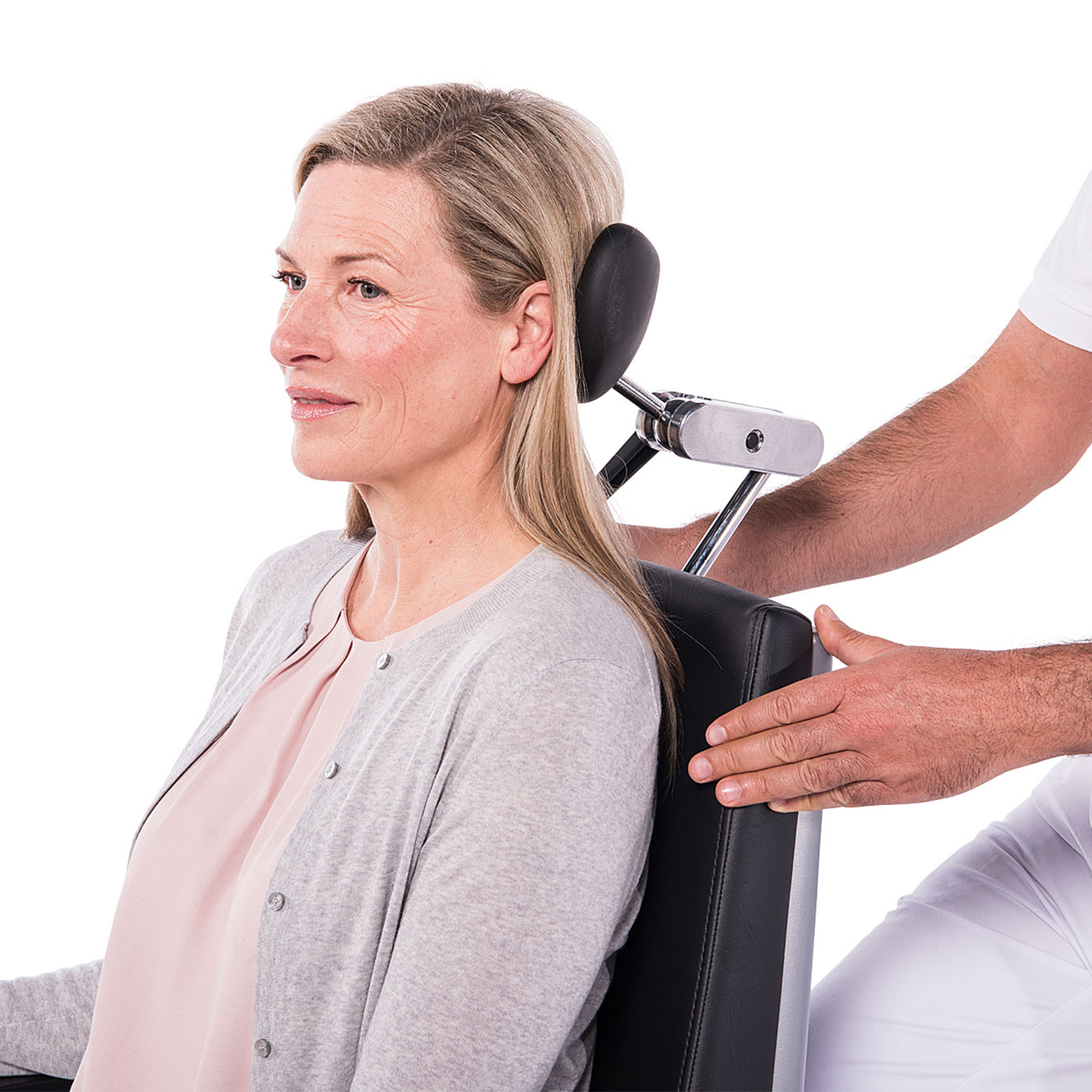

Special ENT headrest of black integral foam, adjustable to all sides by means of a double ball joint, chrome-plated
Headrest, adjustable to all sides by means of a double ball joint, chrome-plated, without fixing, suitable for series 461-474, 22, 39, multiline
Headrest standard (included in the versions 461-474)
Fixing lock for headrests p/n 1444100, 1445000, 1461000, on series 22 and 39
Aluminium-plated base necessary for mounting the fixing on series 22 and 39
Transparent cover for legrest, for models with synchronous and separate adjustment, removable
Footrest for series without synchronous moving legrest, with plate, chrome-plated
Footrest for series without synchronous moving legrest, with foldable plate, chrome-plated
Footrest for series without synchronous moving legrest, chrome plated
Podiatry legrest, can be adjusted individually, for series without synchronous moving legrest

Downloads

Medseat product brochure

deutsch/englisch

Download

Colour pattern card

deutsch/englisch

Download

Medseat

Hydraulic height adjustment and manual adjustment of the reclining surface. The adjustment range for the hydraulic sitting and reclining surface is 20cm. Adjustment is performed by a pump lever. The backrest and leg rest are synchronously adjusted to the horizontal position using a gas spring. medseats with synchronous revolving legrest allow patients to be treated in a reclining position. Alternatively, there are models without legrest; a choice of 3 fixed footrests is available as accessories.
