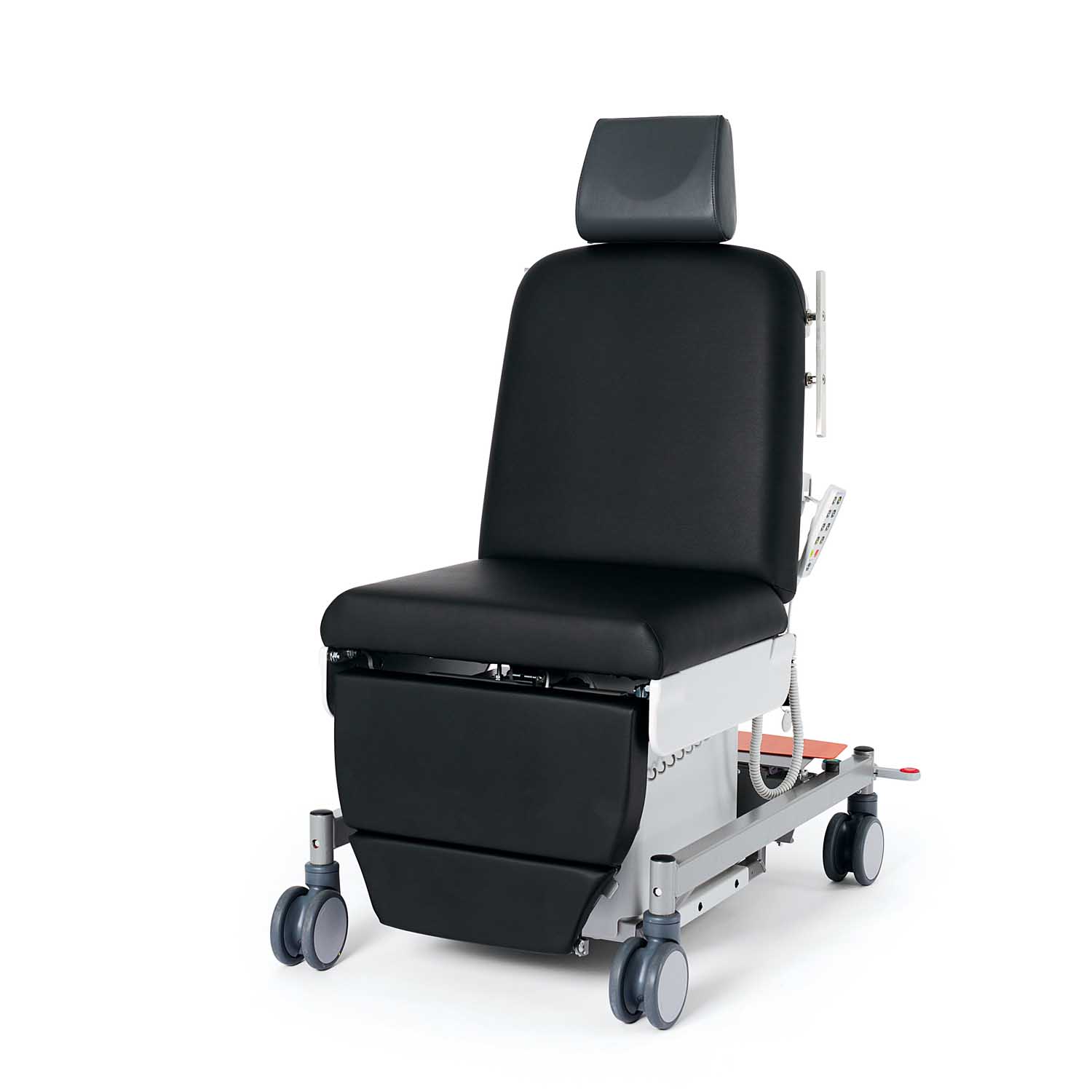

Multiline Next ACX+

EQUIPMENT

  • Mobile operating table and recovery chair with a radiolucent leg section
  • Surgeries in maxillofacial, oral, aesthetic and dermatological surgery, ENT, ophthalmology, orthopaedics, hand surgery (arm/hand surgery table as an option) and much more
  • X-ray and diagnostics of the lower and upper limbs
  • Surgery preparation, recovery and post-operative recovery room in surgery, examination, treatment, mobilisation, transport
  • Electromotive adjustment of back, seat and leg sections and height adjustment up to 90 cm
  • Removable battery, castors and chassis for mobile operation
  • Emergency foot switch for Trendelenburg position
  • Electrically conductive covers EL11 (black) or according to current colour chart
  • Reliable and high-quality product – Made in Germany
Outpatient surgical table Radiolucent leg section Radiology Surgery

Technical Data

Chair upright (floor space) 160 x 78 cm

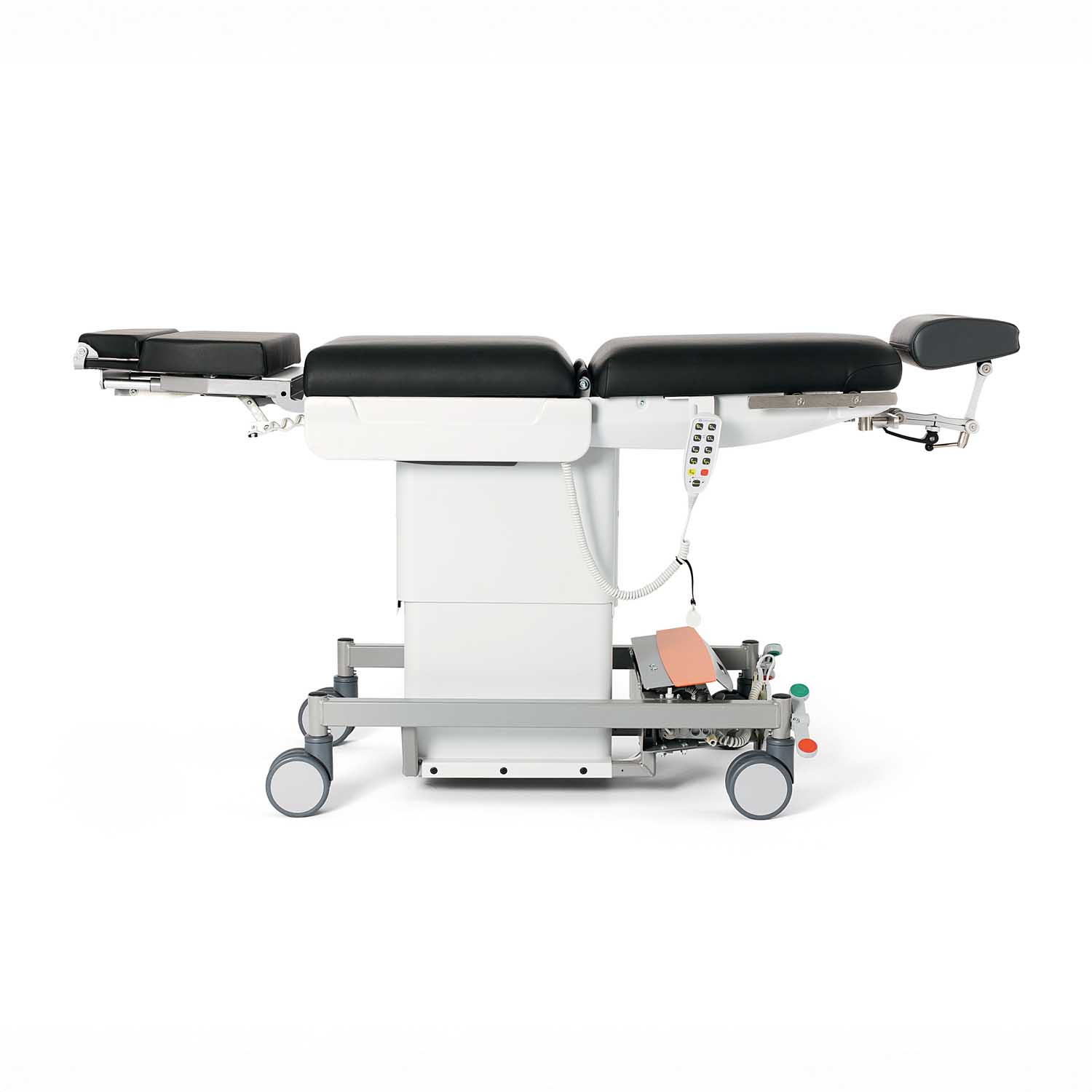

Recline position (floor space) 202 x 78 cm
Total width 78 cm
Surface in reclined position (L x W) 193 x 60 cm (incl. headrest)
Thickness of padding 9 cm
Armrest (L x W) 73 x 7 cm
Access height 58 cm
Height adjustment 32 cm (58-90 cm)
Castor diameter 12,5 cm (1x directional)
Backrest -5° to 78°
Seat section 0° to 22°
Leg section 0° to 30°
Maximun patient weight 220 kg
Voltage 100-240 V/50-60 Hz
Battery performance 24 V DC, 1x 2,9 Ah, (up to 40 movements)
Weight of couch 140 kg

Downloads

Multiline Next ACX+ Brochure

English

Download







MOBILE OPERATING TABLE AND RECOVERY CHAIR WITH RADIOLUCENT LEG SECTION

The GREINER MULTILINE NEXT ACX+ fulfils the requirements of today's outpatient surgical facilities for mobile chairs in and around the operating theatre. For surgeries on the head, face and upper limbs, the ACX+ with its short back section and versatile headrest programme offers precisely the flexibility that interdisciplinary work requires. And the new radiolucent leg section extends the range of applications in a multitude of possible ways.

X-rays of the lower leg, ankle and foot with the C-arm, even intraoperatively, are not only quick and appropriate for diagnosis, they are also ergonomic and comfortable for the patient. The GREINER MULTILINE NEXT ACX+ is therefore an interesting and economical alternative for the operating theatre environment.

Radiolucent leg section for the lower limbs, shown with protective foil (optional) X-rays as examples of the foot and ankle

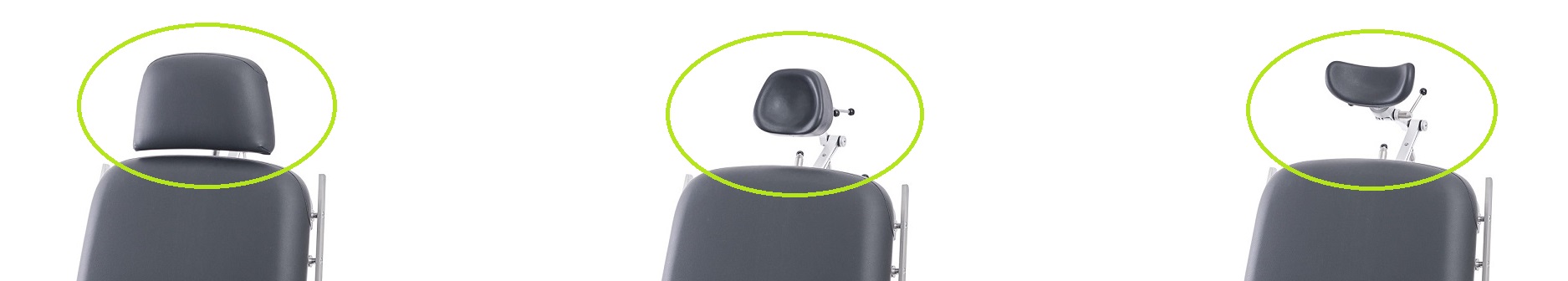

COMPLETELY NEWLY DEVELOPED GREINER HEADREST SYSTEM

Intelligent and quickly exchangeable headrests. Ergo headrest with Vario double joint for one-hand surgery, Quick assist quick coupling for exchangeable headrests as well as individual stretch, full and half-calotte cushions, each with Quick assist equipment.

Optional: replaceable upholsteries Stretch, full and half spherical caps.
